DC24V 23W/M 48leds/m, FPCB12mm, IP20,1LED per cut ,2200LM/M CRI90,SDCM<6>
+86-15994876398
| Specification | Electrical Parameter | Optical Parameter | |||
| LED Type | LENS | Voltage | 24V | LM/M(4000K) | 2200 |
| LED Qty/m | 48LEDS | Power | 23W/M | Color Temp. | 2700+6500K |

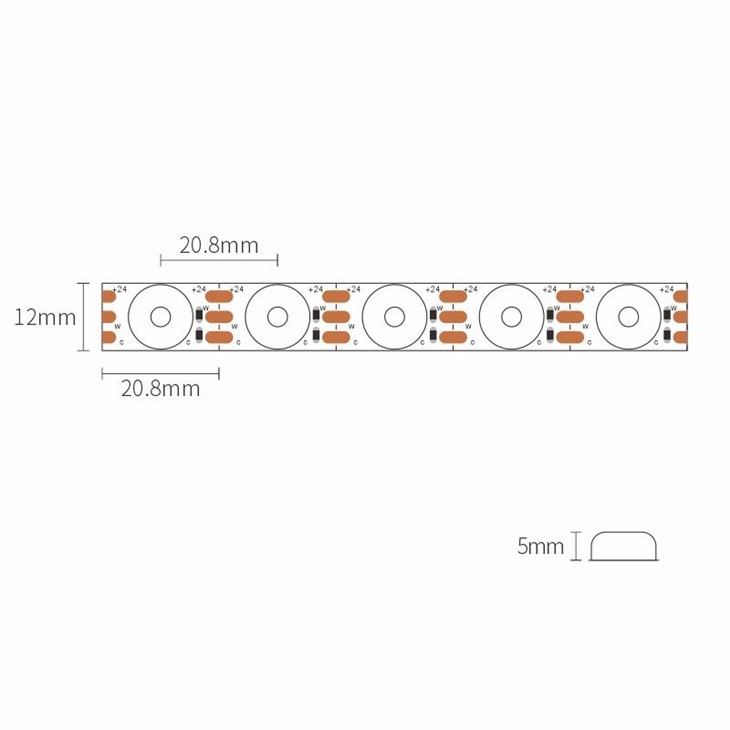

| FPC Width | 12mm | CRI | 90 | ||
| IP Class | IP20 | SDCM | <6 | ||
| Cutting size | 1 LED per cut | ||||
| Bending Diameter | >50mm | ||||
| FPC Thickness | 2oz | ||||
| Packing infomation | Customized tape | Other Customized | |||
| Packing data | 10M/Roll | Normal | Blue | Voltage | 12/24V |
| 250M/CTN | 3M | 300lse | IP Class | IP20/65/67 | |
| 9448A | |||||

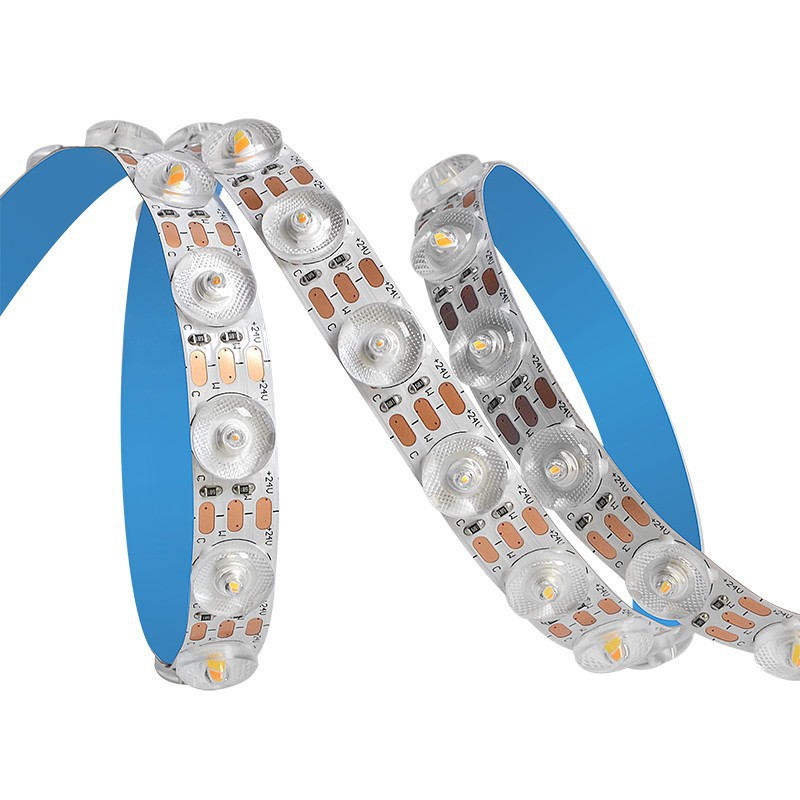

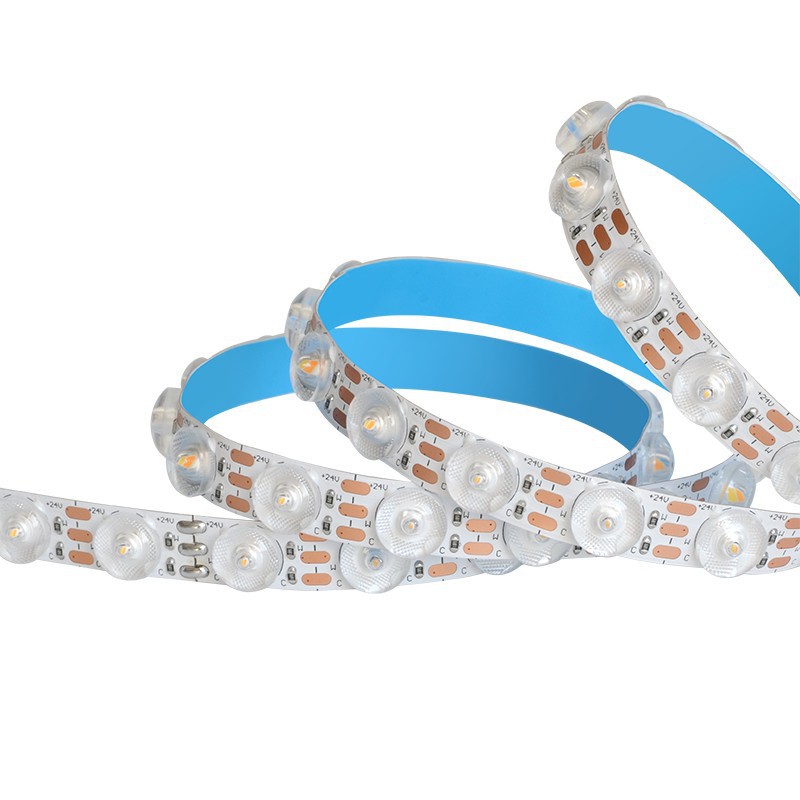

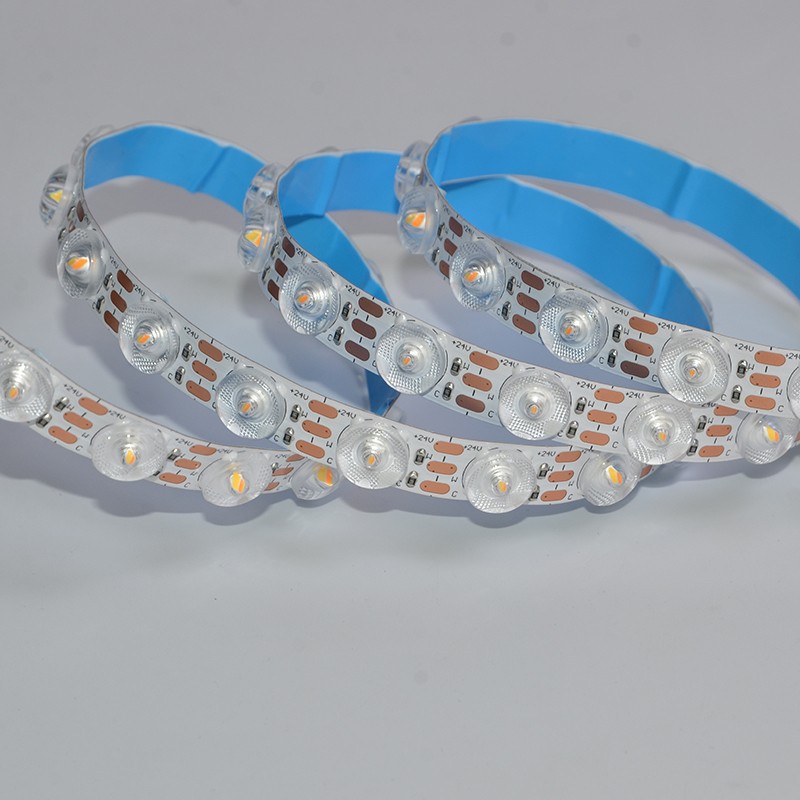

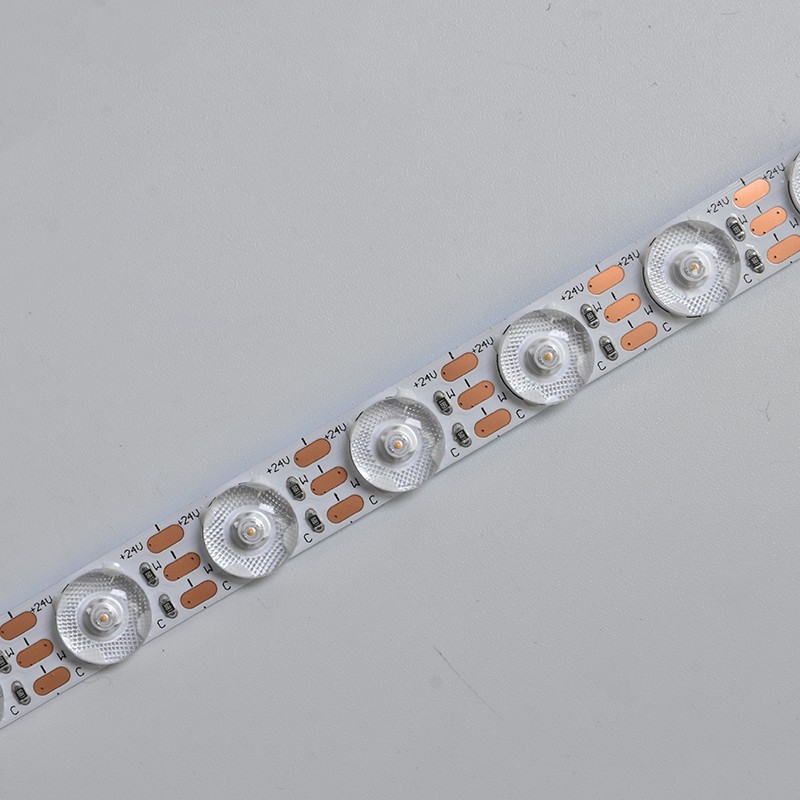

Elevate your lighting projects with our Lens Strip Light, engineered to deliver 170°wide-angle illumination for exceptionally even and shadow-free lighting. Designed to pair perfectly with aluminum profiles, this series achieves professional-grade light diffusion that ordinary strips can't match.
• Natural Light Quality: CRI90 with SDCM<6 ensures accurate color rendering for office LED strips and workspaces
• High-Efficiency Brightness: 2200LM/M at 23W/M delivers optimal illumination without excess energy use
• Wide-Angle Uniformity: 170° beam spread eliminates shadows in profile light installations
• Tunable White LED Strip: Adjust from warm 2700K to cool 6500K to match any task or mood
• Durable Construction: 12mm FPCB provides stability for permanent installations
Cooper Led Strip Light, 19 years of experience, 300+ professional team, 80+ patent certifications, your trusted choice, welcome to visit our LED Strip Light Source China Factory!

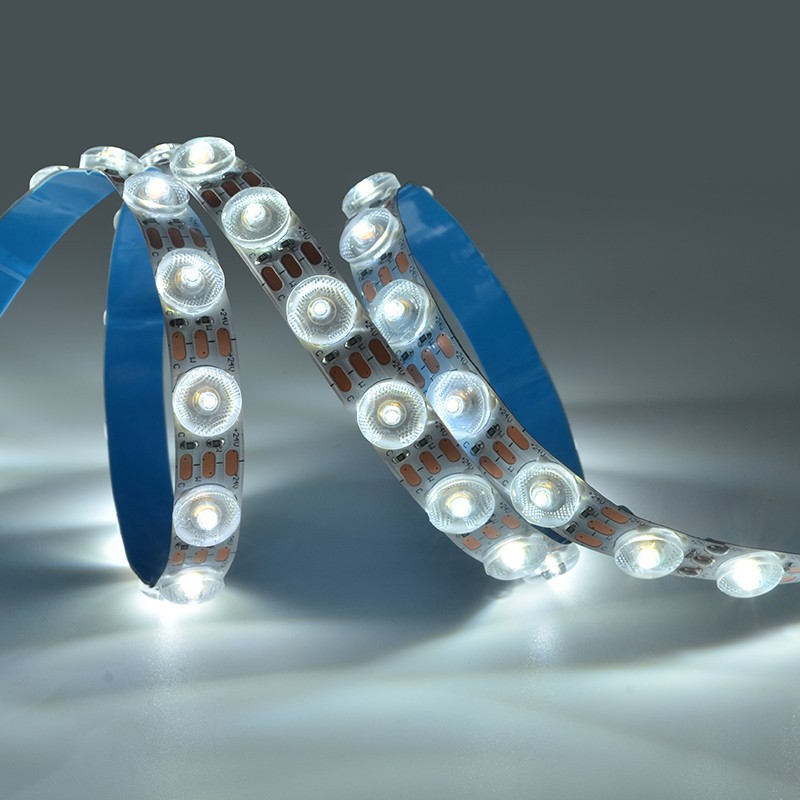

170° Beam Angle
Provides expansive, uniform coverage without dark spots
01
Optimized for Profiles
Works seamlessly with aluminum channels for enhanced heat dissipation and a polished finish.
02
High-Quality Optics
Premium lens design ensures comfortable, glare-free brightness.
03
Versatile Applications
Ideal for cabinet lighting, cove ceilings, display cases and architectural accents.
04
Energy Efficient
Maintains high lumen output while conserving power.
05
